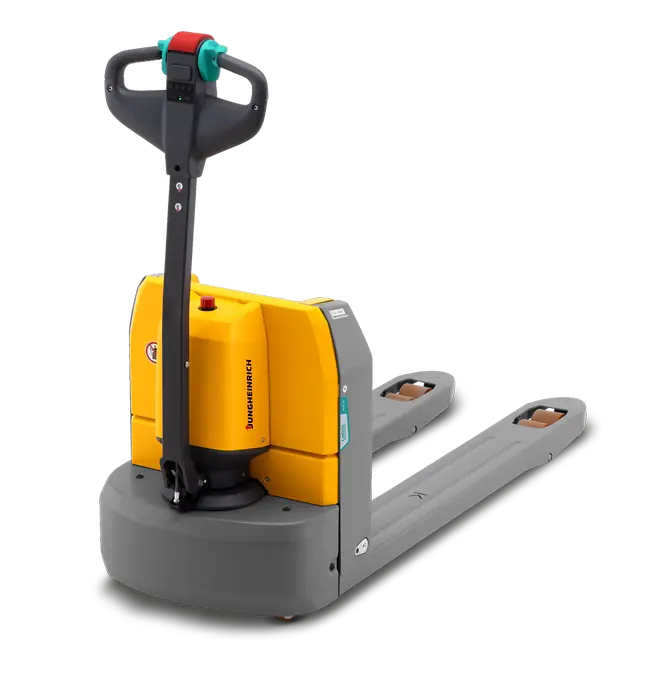

The reliable and durable AME 13, AME 15, and AME 16 electric pallet and drawbar trucks are designed for maximum efficiency in confined and weight-sensitive environments. Their compact design, low service weight, and intuitive one-handed control from both sides allow for effortless operation, even in tight spaces. Reinforced steel frames, protected support wheels, and robust construction ensure long-lasting durability. Automatic speed reduction in corners, stealth mode, and high driving stability provide maximum safety in daily operations. Maintenance-free lithium-ion batteries, with boost and intermediate charging functions, guarantee high availability and energy-efficient performance, making these trucks ideal for in-house pallet transport, HGV operations, and demanding logistics tasks.

  • Versatile electric pallet truck for indoor or outdoor use
  • Intuitive and safe operation with high driving and cornering stability
  • Robust construction with reinforced steel and protected support wheels
  • Standard lithium-ion battery with easy replacement, low energy consumption, and high availability
  • Automatic speed adjustment in corners for safe driving
    Pin code access for protection against unauthorized use

Model Overview

Model Load capacity Lift height Travel speed Overall length Battery voltage
AME 15 (530x800, V-BV) 1,500 kg 115 mm 5.5 km/h 1,200 mm 48 V
AME 15 (530x1000, V-BV) 1,500 kg 115 mm 5.5 km/h 1,400 mm 48 V
AME 15 (530x1150, V-BV) 1,500 kg 115 mm 5.5 km/h 1,550 mm 48 V
AME 15 (530x1150, V-GV) 1,500 kg 115 mm 5.5 km/h 1,550 mm 48 V
AME 15 (670x1000, V-BV) 1,500 kg 115 mm 5.5 km/h 1,400 mm 48 V
AME 15 (670x1150, V-BV) 1,500 kg 115 mm 5.5 km/h 1,550 mm 48 V
AME 15 (670x1150, V-GV) 1,500 kg 115 mm 5.5 km/h 1,550 mm 48 V

Model

 Load capacity Maximum stroke Travel speed Total length battery voltage
AME 16 (540x1000) 1,600 kg 115 mm 5.2 km/h 1'386 mm 48 V
AME 16 (540x1150) 1,600 kg 115 mm 5.2 km/h 1'536 mm 48 V
AME 16 (685x1150) 1,600 kg 115 mm 5.2 km/h 1'536 mm 48 V
Downloads
Factsheet AME 15 pdf (1.3 MB)
Factsheet AME 16 pdf (1.3 MB)
