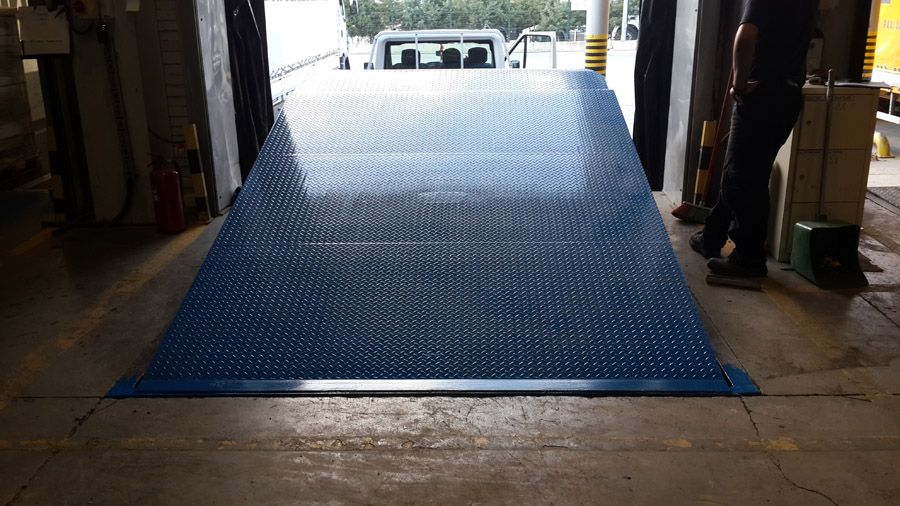

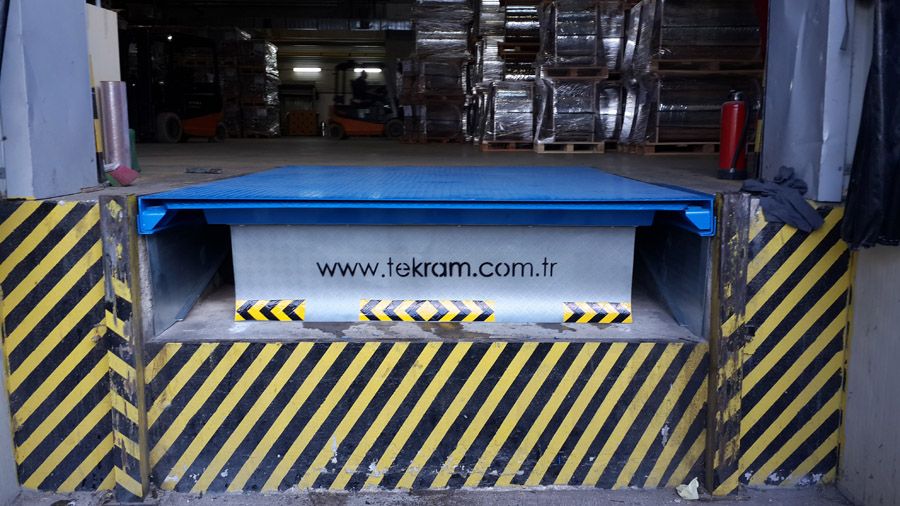

Our telescopic dock leveller combines space-saving design with extended reach. Recessed flush into your dock for a clean workflow, it features a robust hydraulic system and an exceptionally long latch, making it the complete solution for efficiently loading containers and trailers where standard ramps fall short.

Key Benefits

  • Superior for Containers: The 12/13mm thick hydraulic latch, extending from 600mm to 1000mm, securely bridges the gap to container floors, ensuring a safe and complete loading solution.
  • Maximize Productivity: Drastically reduce loading and unloading times to keep your operations moving efficiently.
  • Exceptional Versatility: A wide range of motion allows it to adapt to the height and position of any truck, trailer, or container.
  • Intuitive Operation: Choose from easy-to-use hydraulic or electrical controls for smooth and precise adjustments.
  • Enhanced Safety: The teardrop pattern casting on the lip and deck creates a superior non-slip surface, preventing forklifts from sliding.
  • Automatic Adjustment: The self-levelling design automatically aligns with the vehicle's bed height for a perfect, secure fit every time.
  • Controlled Performance: The system can be safely stopped and locked at any desired position, ensuring complete control during operation.

Standard Features

  • High-visibility black and yellow safety tape
  • Two rubber wheel chocks (100x100x300 mm)
  • Side protective sheets to prevent foot compression
  • High-strength 600mm latch (12/13mm) with teardrop pattern (extends to 1000mm)
  • Hose burst valve to automatically lock the system in an emergency
  • Relief valve to protect the hydraulic pump from strain at maximum lift
