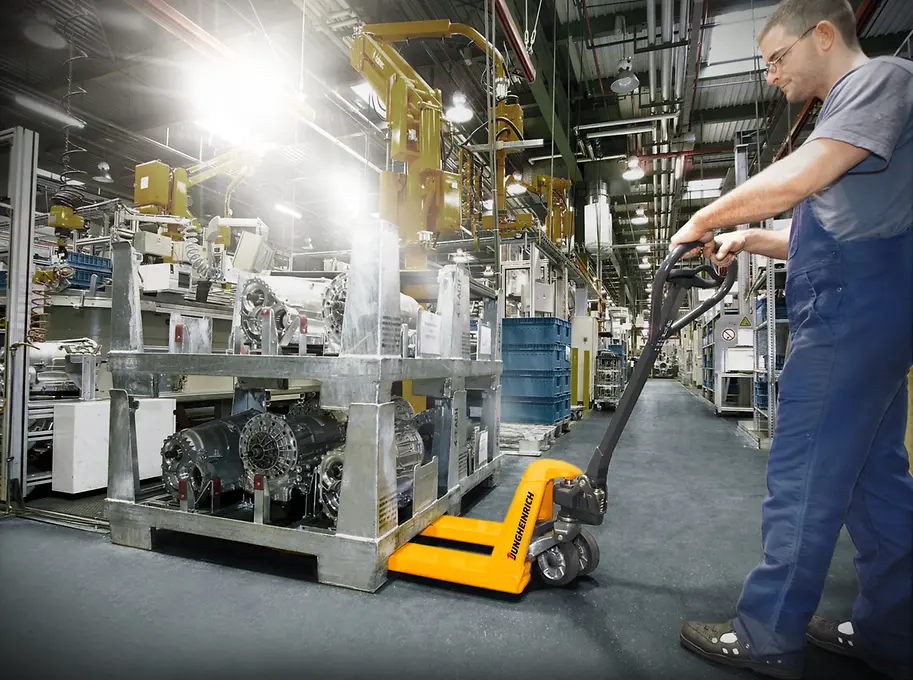

The robust and reliable AM 22 and AM 30 hand pallet trucks are ideal for the daily transport of goods over shorter distances. Both models are particularly easy to handle thanks to their ergonomic tiller heads, operable with either hand, and their optimised hydraulic systems with chromed wheel and joint bushings, allowing effortless movement of goods. Their durable construction, including high-performance or hardened steel, welded tiller mounting, and stable forks, ensures long-lasting performance. The compact, manoeuvrable design of the AM 30 provides a wide steering radius, quiet operation, and safe handling even with heavy cargo. Maintenance-free components and reinforced frames further enhance reliability, making these hand pallet trucks safe and efficient for warehouse and transport operations.

  • Ergonomic tiller for right- and left-handed operators
  • Optimised and innovative hydraulic system for effortless handling
  • Durable construction with robust materials and workmanship
  • Maintenance-free thanks to permanently lubricated connections
  • Special lowering valve and time-saving fast lift for sensitive and efficient operation
  • Flexible 105° steering radius for optimal manoeuvrability

Model Overview


Model Load capacity Lift height Travel speed Overall length
AM 22, 520x600, N-GN, NH 2,200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, N-GN, NH 2,200 kg 122 mm 0 km/h 1,168 mm
AM 22, 520x902, N-GN, NH 2,200 kg 122 mm 0 km/h 1,275 mm
AM 22, 520x950, N-GN, NH 2,200 kg 122 mm 0 km/h 1,275 mm
AM 22, 520x1054, N-GN, NH 2,200 kg 122 mm 0 km/h 1,427 mm
AM 22, 520x1150, N-GN, NH 2,200 kg 122 mm 0 km/h 1,523 mm
AM 22, 520x1207, N-GN, NH 2,200 kg 122 mm - 1,523 mm
AM 22, 520x600, C-GN, NH 2,200 kg 122 mm 0 km/h 973 mm
AM 22, 520x795, C-GN, NH 2,200 kg 122 mm 0 km/h 1,168 mm
*** Representative models listed; please contact us for the complete range.

Model Load capacity Lift height Travel speed Overall length
AM 30, 550x1220, V-BV, SH 3,000 kg 120 mm 0 km/h 1,603 mm
AM 30, 550x1600, V-BV, SH 3,000 kg 120 mm 0 km/h 1,983 mm
AM 30, 550x1800, V-BV, SH 3,000 kg 120 mm 0 km/h 2,183 mm
AM 30, 550x2100, V-BV, SH 3,000 kg 120 mm 0 km/h 2,483 mm
